Reference

Quality and performance

Four tiers, from integrated laptop GPUs to desktop cards. The top two switch the waves to a GPU FFT. Every setting can be overridden on its own, at creation or at runtime.

const water = await WaterSystem.create({ renderer, scene, camera, quality: 'medium' });
water.setQualityLevel('ultra');
water.setQualityLevel('high', { msaa: 0, ssrSteps: 32 });   // tier + overrides
water.qualityName;   // 'high'
water.quality;       // the effective settings

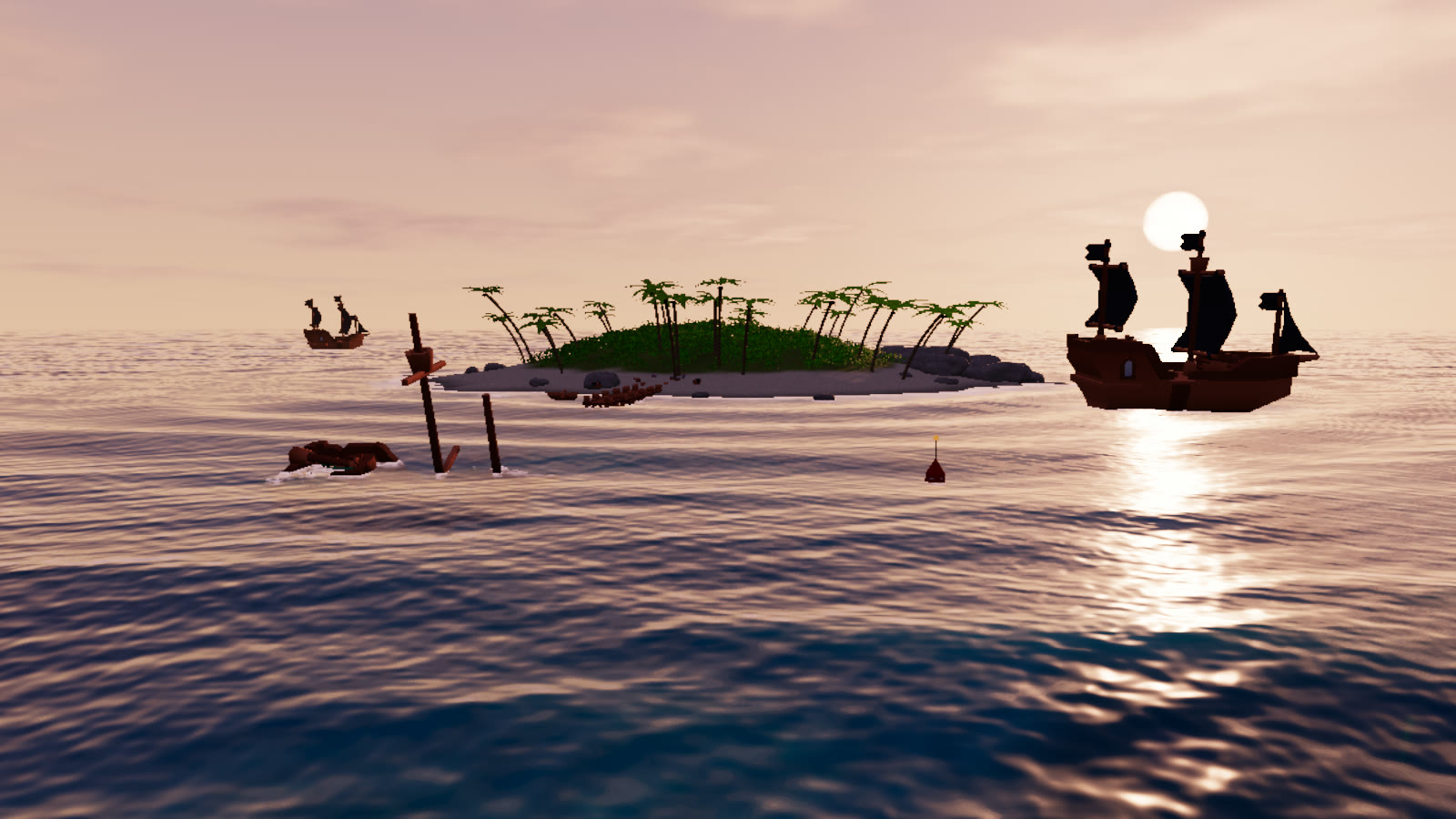

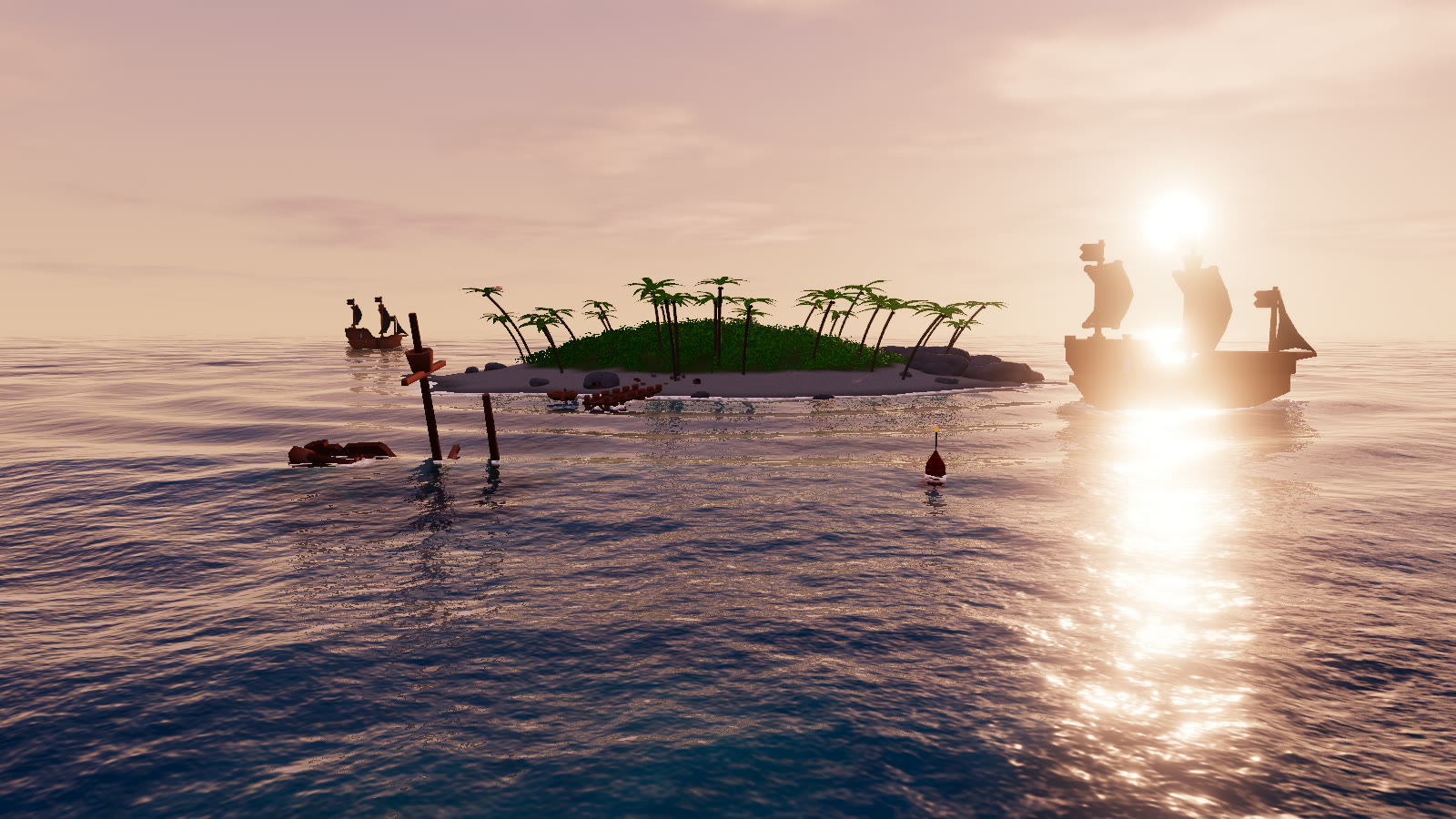

The demo's default view on `sunset`, low against ultra. Low uses 24 Gerstner waves at 75 % resolution with no bloom, foam field or reflections; ultra uses the FFT with three 256² cascades.

The demo's default view on `sunset`, low against ultra. Low uses 24 Gerstner waves at 75 % resolution with no bloom, foam field or reflections; ultra uses the FFT with three 256² cascades.

#Every field

Field	low	medium	high	ultra
`waveSource`	`gerstner`	`gerstner`	`fft`	`fft`	Where the waves come from
`fftSize`	128	128	128	256	FFT resolution per cascade (power of two)
`fftCascades`	2	2	2	3	1–3 cascades: 512 m, 67.3 m rotated 35°, 10.7 m rotated 78°
`waves`	24	32	40	56	Gerstner components. On FFT tiers only used if you override `waveSource`
`gridAngular` × `gridRadial`	160 × 140	208 × 170	256 × 200	320 × 240	Polar grid round the camera
`renderScale`	0.75	0.9	1	1	Offscreen resolution relative to the drawing buffer
`msaa`	0	0	4	4	World-pass MSAA samples
`bloomLevels`	0	4	5	6	Bloom mips (0 = off)
`foamResolution`	0	256	512	1024	Persistent foam field texels (0 = instant foam only)
`foamExtent`	256	256	320	400	Foam field size round the camera, m
`ssrSteps`	0	0	20	32	Screen-space reflection steps (0 = sky only)
`detailLayers`	1	2	2	2	Micro-normal layers
`godRaySteps`	0	6	10	16	Underwater light-shaft samples (0 = off)
`bathymetryResolution`	192	256	384	512	Default seabed bake size

setQualityLevel always recompiles the ocean material. The spectrum, grid, FFT and foam field are rebuilt only when their settings change. A bathymetry baked without an explicit resolution is re-baked at the new tier's size.

#Measured frame rates

Apple M5, headless Chromium with ANGLE/Metal, 1280×720, the full demo scene, uncapped (--disable-gpu-vsync --disable-frame-rate-limit), GPU otherwise idle, measured back to back with the original page:

	fps
The original single-file page	~200
`medium` (Gerstner 32)	~220
`high` (FFT 128² × 2, MSAA 4×, SSR, bloom, foam field)	~140 (120 with vsync)
`ultra` (FFT 256² × 3)	~107

Run npm test to print the fps line on your own machine. Run one smoke test at a time; parallel GPU runs skew the numbers.

#Where the time goes

water.profiling = true;
setInterval(() => console.table(water.gpuTimings), 2000);   // ms per pass, smoothed

World-pass MSAA is the biggest single cost on high, about 20 %. setQualityLevel('high', { msaa: 0 }) trades it for aliased silhouettes.
Resolution. renderScale scales every offscreen target. The demo also lowers its pixel ratio in 0.25 steps (down to 0.75) when the frame time stays above about 34 ms.
Reflections. ssrSteps: 0 falls back to sky-only reflections.
Waves. fftCascades: 2 on ultra, or waveSource: 'gerstner' on high, cuts the FFT cost.
Foam. A smaller foamResolution keeps trails and whitecaps with coarser lace. 0 turns the field off.
