NatureGL Water · Gerstner ocean, shorelines, buoyancy and diving

#Your scene, with water in it

WaterSystem adds one ocean mesh and a sky dome to your scene and draws it with your camera. update(dt) advances the waves, foam, buoyancy and wakes. render() draws your scene into an HDR target with depth, puts the water over it, and tone-maps to the canvas.

Follow the quick start or see how it composes with NatureGL Sky.

Half in, half out at the waterline, then down to the reef. It is the same ocean seen from below, with Snell's window, light shafts and caustics on the seabed.

presets, one file each: 7
quality tiers, low to ultra: 4
high tier, Apple M5, 1280×720 uncapped: ~140 fps
hulls with wakes at once: 8

#What's in the box

Two wave sources
A GPU FFT ocean (Tessendorf, JONSWAP spectrum, 2–3 cascades) on high and ultra, a 24–40 wave Gerstner sum on low and medium. Both are driven by the same wind, wavelength and direction.
Water with real depth
Beer–Lambert absorption by true thickness, in-scatter, refraction with a depth blur, screen-space reflections, GGX sun glitter and crest subsurface scattering.
Shorelines from any terrain
Bake a height function once. Waves shoal over the shelf, breakers roll up the beach and break by depth, and swash foam runs up the sand.
Foam that lingers
Whitecaps collect in a persistent foam field and break up into lace after the crest passes. Hulls leave trails behind them.
Buoyancy and wakes
sampleHeight reads the same wave field the GPU draws. Objects bob or pitch and roll, and moving hulls get contact foam and a Kelvin wake.
Underwater
Fog and absorption, light shafts, Snell's window with the refracted scene, total internal reflection, and a waterline with a meniscus.

#Seven seas, ready to load

Every preset is a plain params object in src/config/presets/. Load one with loadPreset, change a few values with setParams, or save your own with getParams().

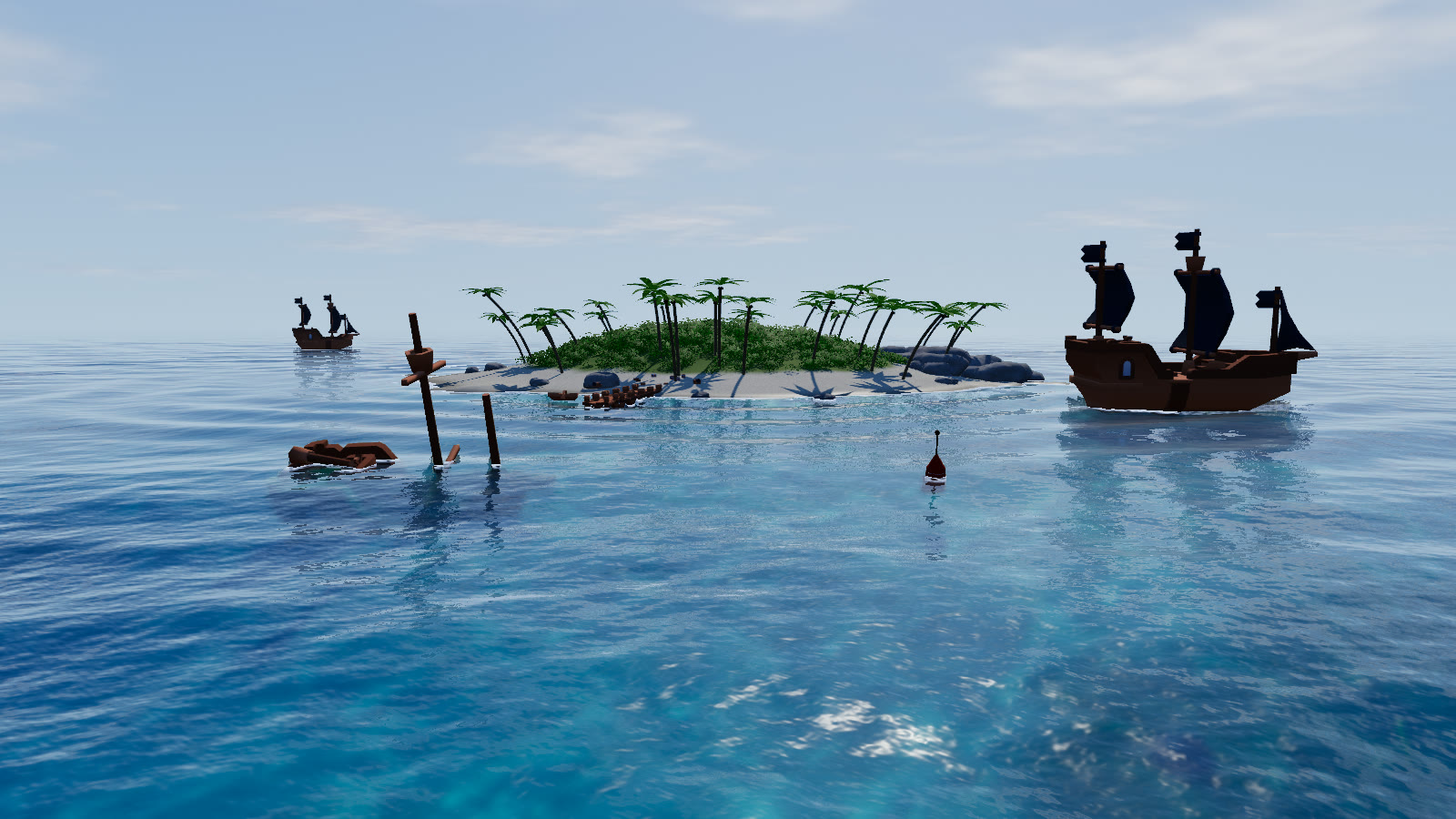

Tropical preset — Tropical`tropical`Clear afternoon over a turquoise reef shelf.

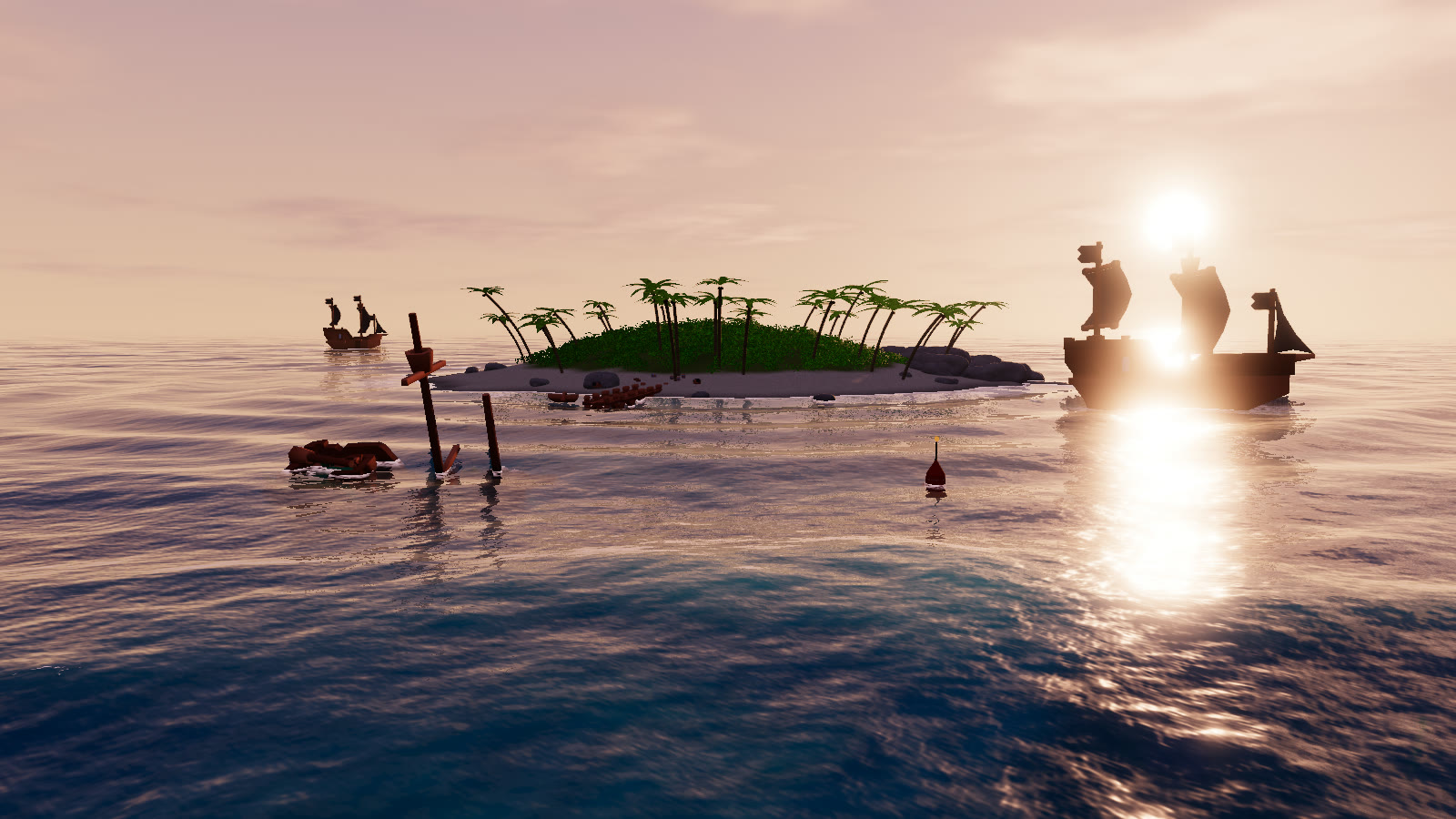

Sunset preset — Sunset`sunset`Low sun, a long glitter path and warm haze.

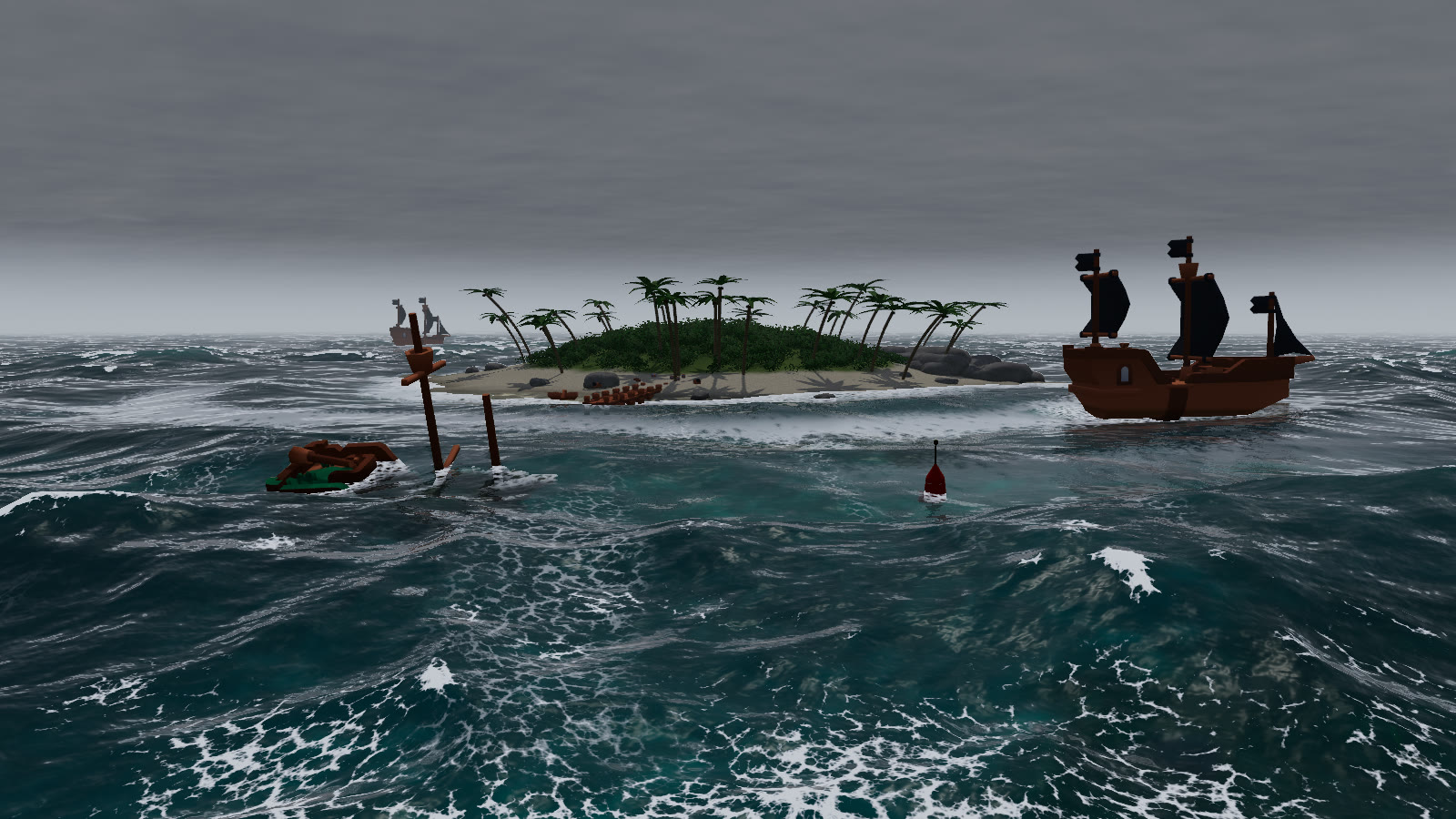

Storm preset — Storm`storm`Gale-force wind, long swell and breaking whitecaps under a dark deck.

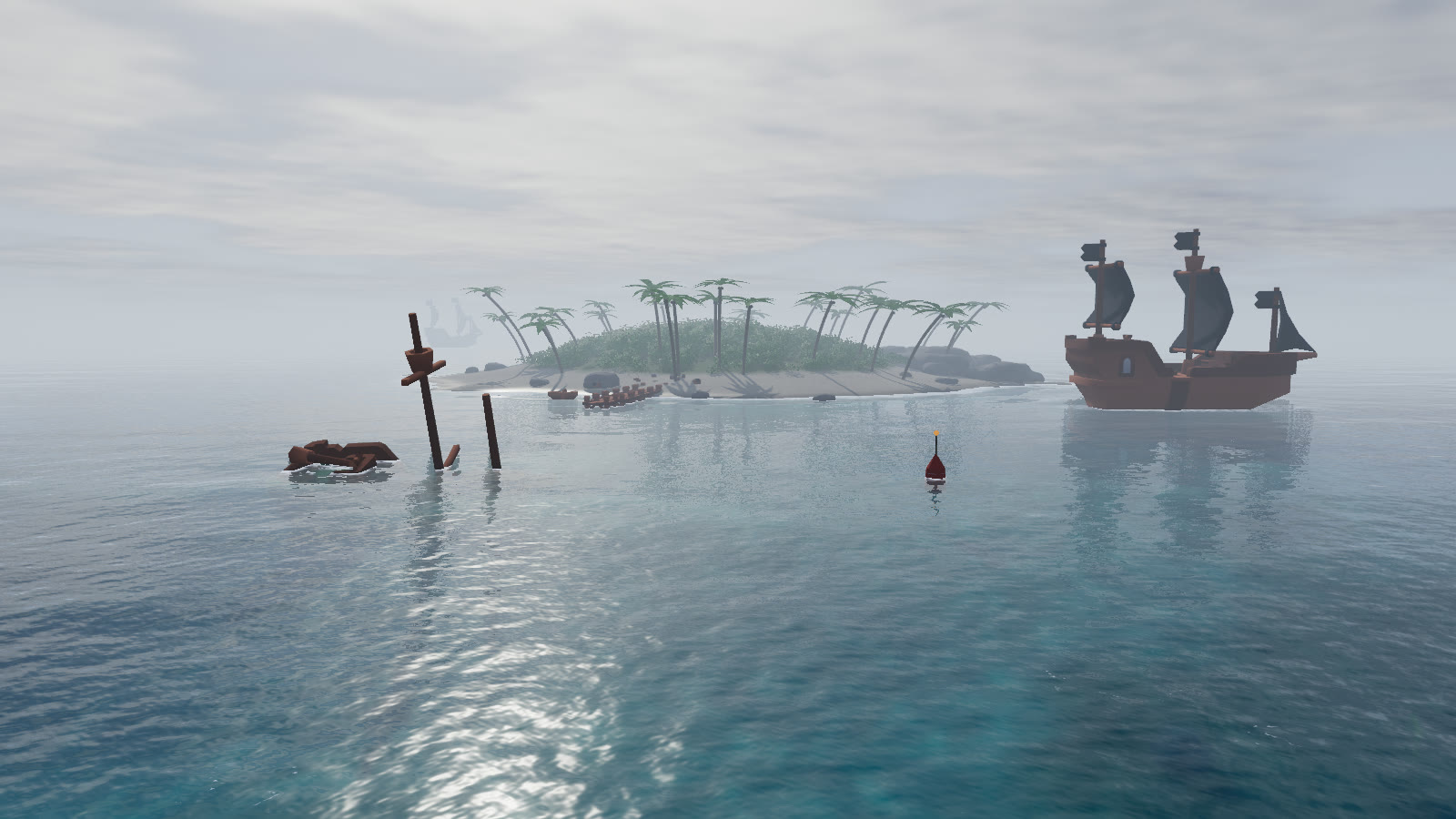

Foggy preset — Foggy`foggy`Calm grey morning, visibility a few hundred metres.

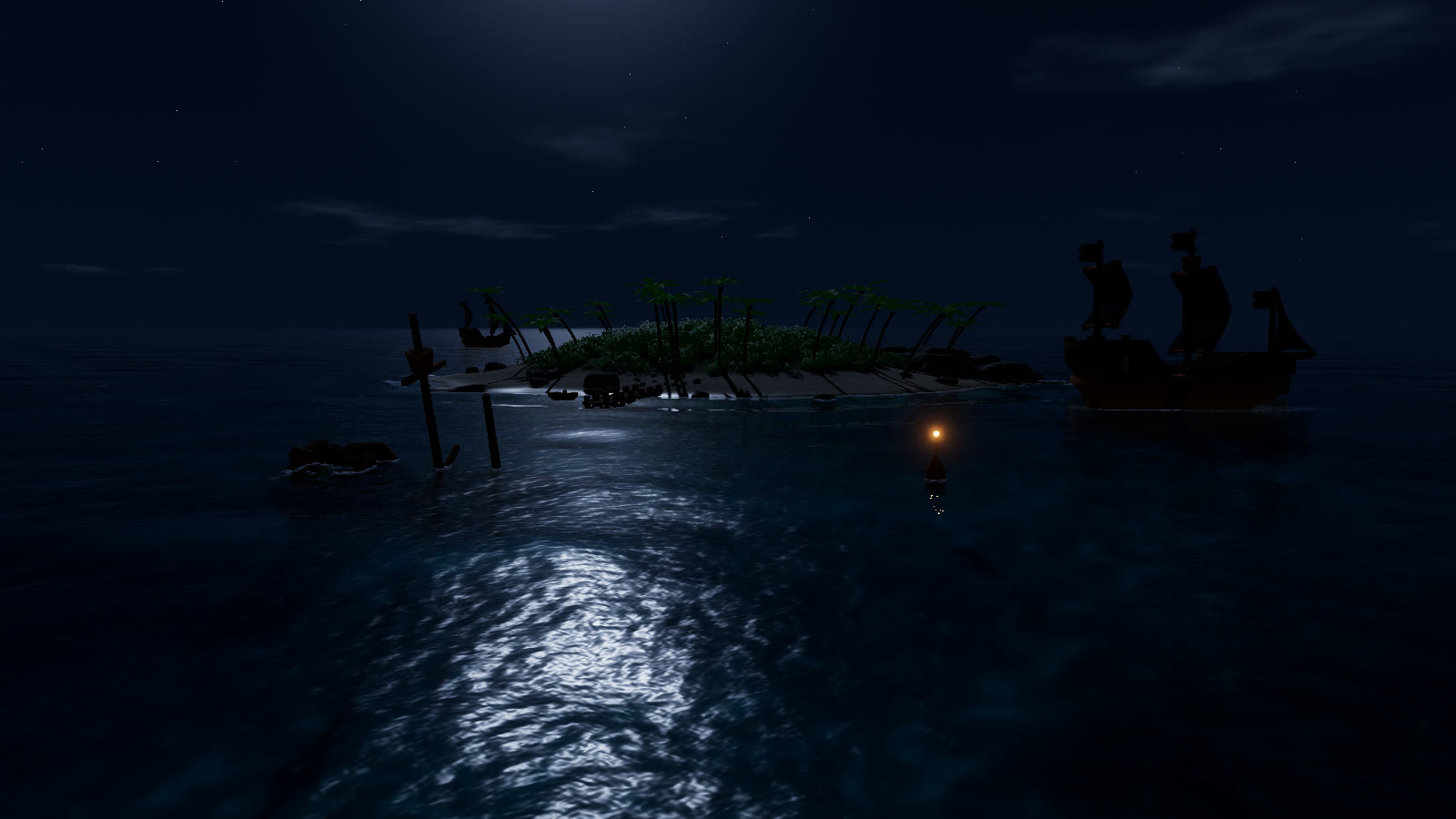

Moonlit preset — Moonlit`moonlit`Night sea lit by the moon and stars.

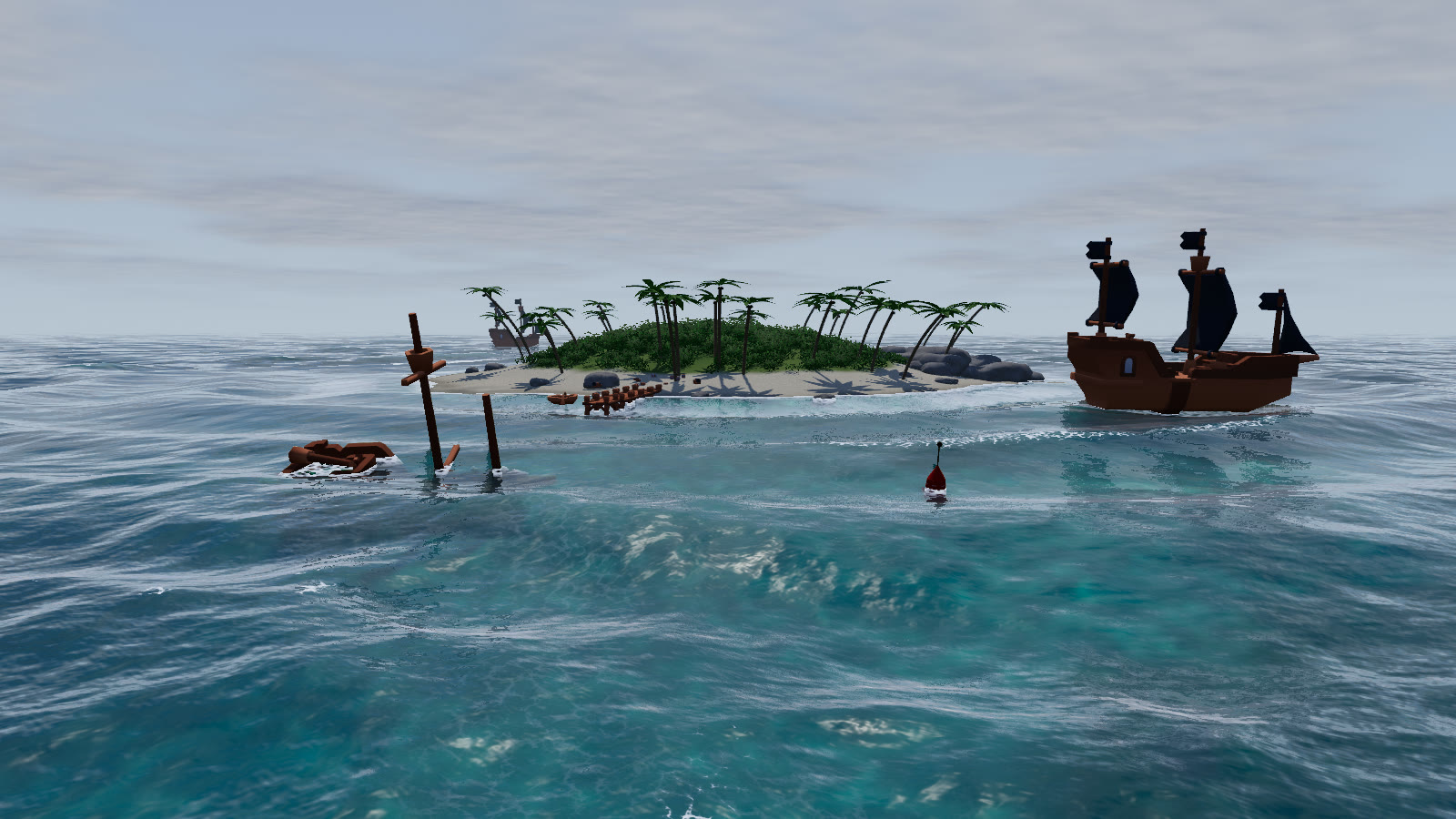

Arctic preset — Arctic`arctic`Cold, steel-blue water and a fresh breeze.

See all seven presets

#A floating raft in thirty lines

main.js

import * as THREE from 'three';
import { WaterSystem } from 'naturegl-water';

const renderer = new THREE.WebGLRenderer();   // leave toneMapping at NoToneMapping
renderer.setSize(innerWidth, innerHeight);
document.body.appendChild(renderer.domElement);
const scene = new THREE.Scene();
const camera = new THREE.PerspectiveCamera(55, innerWidth / innerHeight, 0.3, 12000);
camera.position.set(0, 7, 26);

const water = await WaterSystem.create({ renderer, scene, camera, preset: 'tropical' });
const sun = new THREE.DirectionalLight(), hemi = new THREE.HemisphereLight();
scene.add(sun, sun.target, hemi);

const raft = new THREE.Mesh(
  new THREE.BoxGeometry(3, 1, 5),
  new THREE.MeshStandardMaterial({ color: 0xf0ad4e }),
);
scene.add(raft);
water.buoyancy.addObject(raft, { size: { length: 5, beam: 3 }, draft: 0.2 });

const timer = new THREE.Timer();
renderer.setAnimationLoop(t => {
  timer.update(t);
  water.update(timer.getDelta());   // waves, sky, buoyancy, wakes, foam
  water.bindLights(sun, hemi);      // your lights follow the sky
  water.render();                   // scene -> HDR + depth -> water -> bloom -> ACES
});

#Weather that changes while you watch

From tropical to storm in twelve seconds by easing wind, wavelength, clouds and the water optics. Significant wave height goes from 0.85 m to about 6 m.

#Part of the NatureGL series

NatureGL Water reads its light from a sky. It has its own built-in sky, and setSky() plugs in NatureGL Sky's SkySystem or any object with a sun, an environment map and a fog colour. NatureGL Island builds its sea on it.
